Product Description

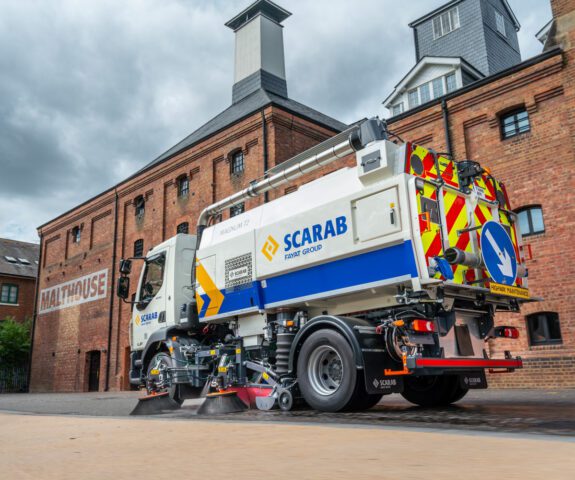

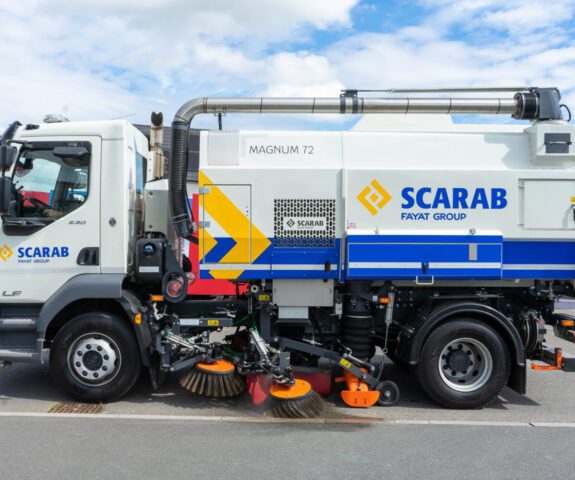

Scarab Magnum 72 road sweeper
Big on capacity, big on performance – heavy-duty road sweeper from 15-18 tonne GVW.
The Magnum 72 road sweeper has been designed for mounting on a truck chassis in the range of 15-18 tonne GVW and is capable of delivering powerful cleansing results in municipal, construction and road maintenance settings. Available in single-engine hydrostatic configurations, with a 7.2 cubic metre hopper giving a potential payload capacity of up to 9000kg and a water capacity ranging from 1800-2500 litres, the Magnum 72 is the optimum road sweeper for any operator looking to work harder, for longer.
For the most demanding of heavy-duty applications, Scarab’s optional high-speed fan solution takes the Magnum 72’s performance to the next level.
SINGLE ENGINE, SINGLE EMISSION, NO COMPROMISE
Scarab can justifiably claim to be the pioneer of the truck-mounted road sweeper powered from a single-engine.
Operating the whole road sweeper machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight, greater payload and reduced maintenance.
FLEXIBLE, TRUCK-MOUNTED ROAD SWEEPER SOLUTIONS
The Magnum 72 is just one of Scarab’s expertly engineered truck-mounted road sweeping solutions. Because of this flexibility, the Magnum 72 can be fitted to a wide choice of chassis including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault, Freightliner and more
The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. As well bringing a range of benefits such as reduced weight, increased payload, reduced fuel consumption and lower emissions, it also offers a range of operator benefits with its simple joystick control for Forward and Reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.
Vehicle specification
Size:
15-18 tonne GVW
Sweeping speed:
0-20 mph / 0-32 kph
Hopper capacity:
7.2 cubic metres
Water tank:
1800-2500 litres
Engine:
Single Engine
Typical payload:
6000 – 9000 kg
Sweep width:
2365mm single/ 3200mm dual
