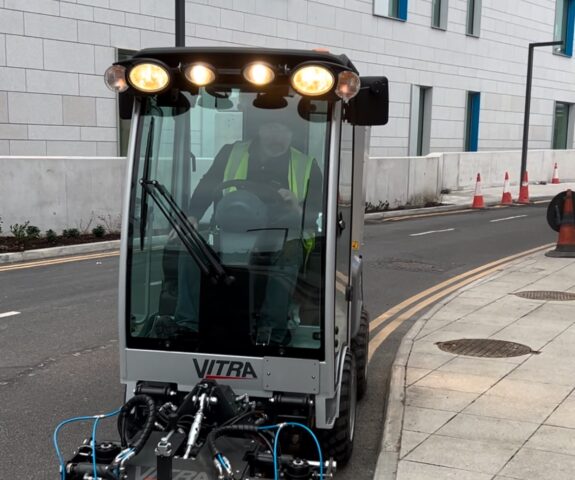

VITRA C2.25 Municipal Sweeper

The new Vitra C2.25 Sweeping suction unit offers a wide range of improvements which, when put together, give users an even more effective tool for exterior cleaning. The suction power is improved by 25%. The suction hose is
“straightened out”, and now runs in a straight rising line from the suction head to the dirt container. The dirt container is extended and has a volume of 750/650l. Gross/net (En 15429-2). The container is now made of seawater-resistant aluminum, which is corrosion-resistant and light and contributes to a higher load capacity. When the container needs to be emptied, it is done easily with 165 cm high dump and a container that opens the entire upper part, so dirt, leaves and grass can be easily emptied out. Finally, energy consumption is reduced by 30%. The large container volume also places greater demands on the fresh water container, which has been expanded to 140 l. As a further improvement, the system is equipped with an efficient hose flushing system, which pumps approx. 18 l/min. of water into the suction head, so that the suction hose is always kept clean and free. The container comes with a trolley so that the box can be easily dismantled and stored after use. The powerful 2 brush front with Ø650 mm round brushes is easily optimally adjusted and operated via the joystick in the cabin.
A number of exciting accessories are offered for the system, including video surveillance with a camera mounted at the back for better visibility and a camera mounted at the wide 600 mm suction head, so it is easier if necessary. to use the hydraulically operated flap for larger dirt. High-pressure cleaner with 10 m hose reel is also an option.



Municipal Sweepers, Roads, Pedestrian

Price on request

Get A Quote

Product Details

Overview

The new Vitra C2.25 Sweeping suction unit offers a wide range of improvements which, put together, give users an even more effective tool for exterior cleaning. The suction power is improved by 25%. The suction hose is
“straightened out”, and now runs in a straight rising line from the suction head to the dirt container. The dirt container is extended and has a volume of 750/650l. Gross/net (En 15429-2). The container is now made of seawater-resistant aluminum, which is corrosion-resistant and light and contributes to a higher load capacity. When the container needs to be emptied, it is done easily with 165 cm high dump and a container that opens the entire upper part, so dirt, leaves and grass can be easily emptied out. Finally, energy consumption is reduced by 30%. The large container volume also places greater demands on the fresh water container, which has been expanded to 140 l. As a further improvement, the system is equipped with an efficient hose flushing system, which pumps approx. 18 l/min. of water into the suction head, so that the suction hose is always kept clean and free. The container comes with a trolley so that the box can be easily dismantled and stored after use. The powerful 2 brush front with Ø650 mm round brushes is easily optimally adjusted and operated via the joystick in the cabin.
A number of exciting accessories are offered for the system, including video surveillance with a camera mounted at the back for better visibility and a camera mounted at the wide 600 mm suction head, so it is easier if necessary. to use the hydraulically operated flap for larger dirt. High-pressure cleaner with 10 m hose reel is also an option.

MODEL C2FS2010
Length – Suction front: 640 mm.
Width – Suction front: 1050 – 1850 mm.
Total length: 3900 mm.
Brush diameter: 650 mm.
Container volume: 750 l. (0,75 m3) (650 l. / 0,65 m³ netto volume)
Water nuzzles: 4-6 pcs.
Water pressure: 2-10 bar

Download Specification PDF
